SHIMANO GRAPPLER ROD TYPE C (2019)
Unconventional specs that overturn common sense in the middle class. The world's standard offshore rod - Type Casting.

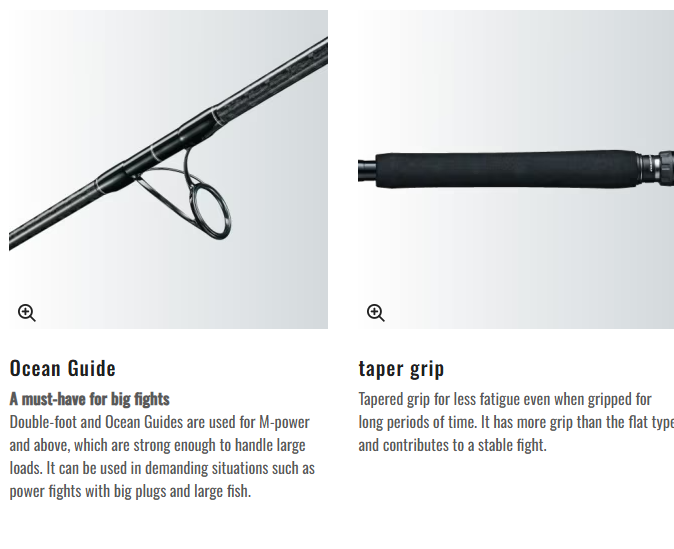

After investigating the rush and high brought to anglers through casting game, 9 spinning models from S70L to S82XH have been developed. Grappler Type C is a rod which focuses on what is important in refining castability. For rods with actions L and ML, stainless steel framed K-guides are used while double-footed MN guides are used for rods with actions M through XH for higher strength and rigidity. The lengths of the rods were carefully chosen after considering the height of the footholds
FEATURES
SKU NUMBER
|
SKU NUMBER |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKU NUMBER |
TOTAL LENGTH (FT) |
TOTAL LENGTH (M) |
SECTIONS |
CLOSED LENGTH (CM) |
WEIGHT (G) |
TOP DIAMETER (MM) |
LURE WEIGHT (G) |
PE BRAIDED (GOU) |
MAX DRAG (KG) |
ANGLE |
REEL SEAT POSITION (MM) |
REEL FIXING METHOD |
CARBON CONTENT |
JDM CODE |
| S70L | 7'0" | 2.13 | 2 | 167.7 | 187 | 2.2 | MAX 60 | MAX 2.5 | 4 | 45 | 333 | DOWNLOCK | 92 | 391926 |
| S73ML | 7'3" | 2.21 | 2 | 169.6 | 209 | 2.3 | MAX 80 | MAX 3 | 6 | 45 | 361 | DOWNLOCK | 92.2 | 391933 |
| S77M | 7'7" | 2.31 | 2 | 174.2 | 238 | 2.5 | MAX 100 | MAX 5 | 8 | 45 | 395 | DOWNLOCK | 92.5 | 391957 |
| S77MH | 7'7" | 2.31 | 2 | 169.9 | 315 | 2.8 | MAX 120 | MAX 6 | 10 | 45 | 411 | DOWNLOCK | 92.6 | 391971 |
| S710ML | 7'10" | 2.39 | 2 | 182.2 | 238 | 2.3 | MAX 80 | MAX 4 | 6 | 45 | 395 | DOWNLOCK | 92.6 | 391940 |
| S80M | 8'0" | 2.44 | 2 | 182.9 | 256 | 2.5 | MAX 100 | MAX 5 | 8 | 45 | 410 | DOWNLOCK | 92.5 | 391964 |
| S82MH | 8'2" | 2.49 | 2 | 181.9 | 340 | 2.8 | MAX 120 | MAX 6 | 10 | 45 | 447 | DOWNLOCK | 92.6 | 391988 |
| S82H | 8'2" | 2.49 | 2 | 181.9 | 365 | 3.0 | MAX 150 | MAX 8 | 12 | 45 | 447 | DOWNLOCK | 92.6 | 391995 |
| S82XH | 8'2" | 2.49 | 2 | 181.9 | 380 | 3.2 | MAX 180 | MAX 10 | 14 | 45 | 447 | DOWNLOCK | 92.7 | 392008 |
